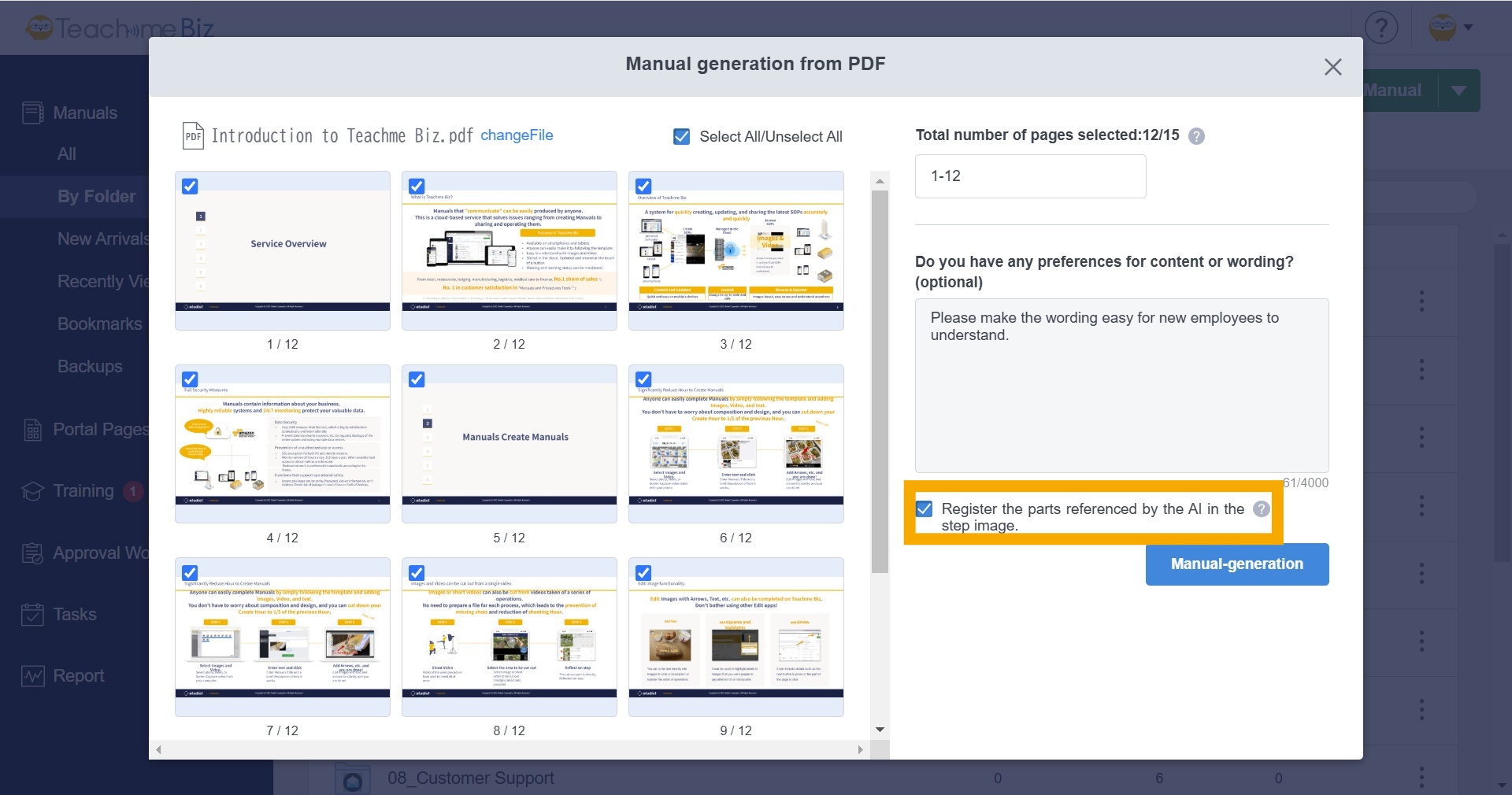

The manual draft generation screen from PDF includes a checkbox for "Register the parts referenced by the AI in the step image".
This checkbox allows selection of whether to include step images during manual generation.

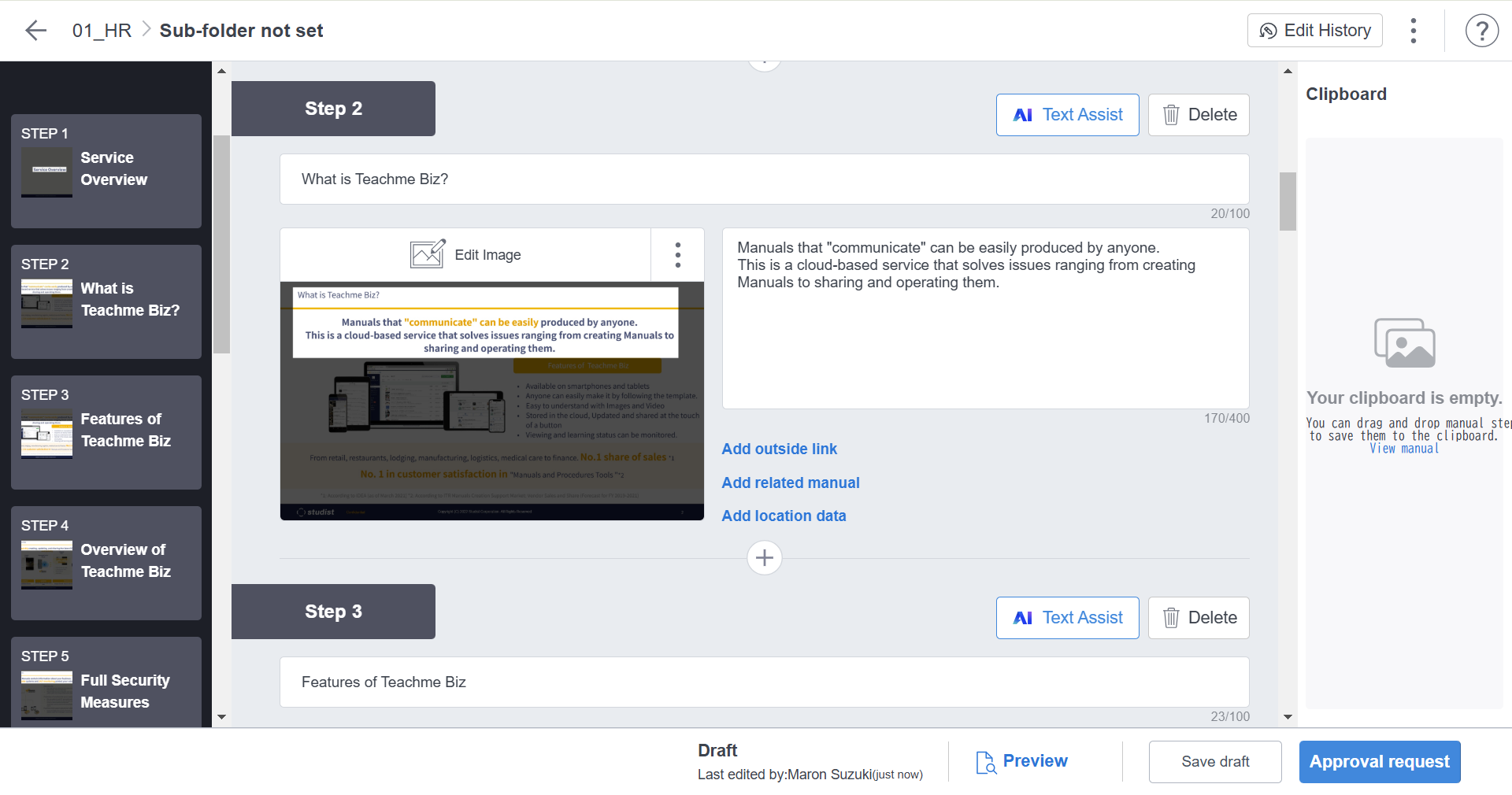

When checked (Default)
- Images are generated with highlighted sections of the PDF that AI referenced during step generation
- Generated images can be edited or replaced as needed

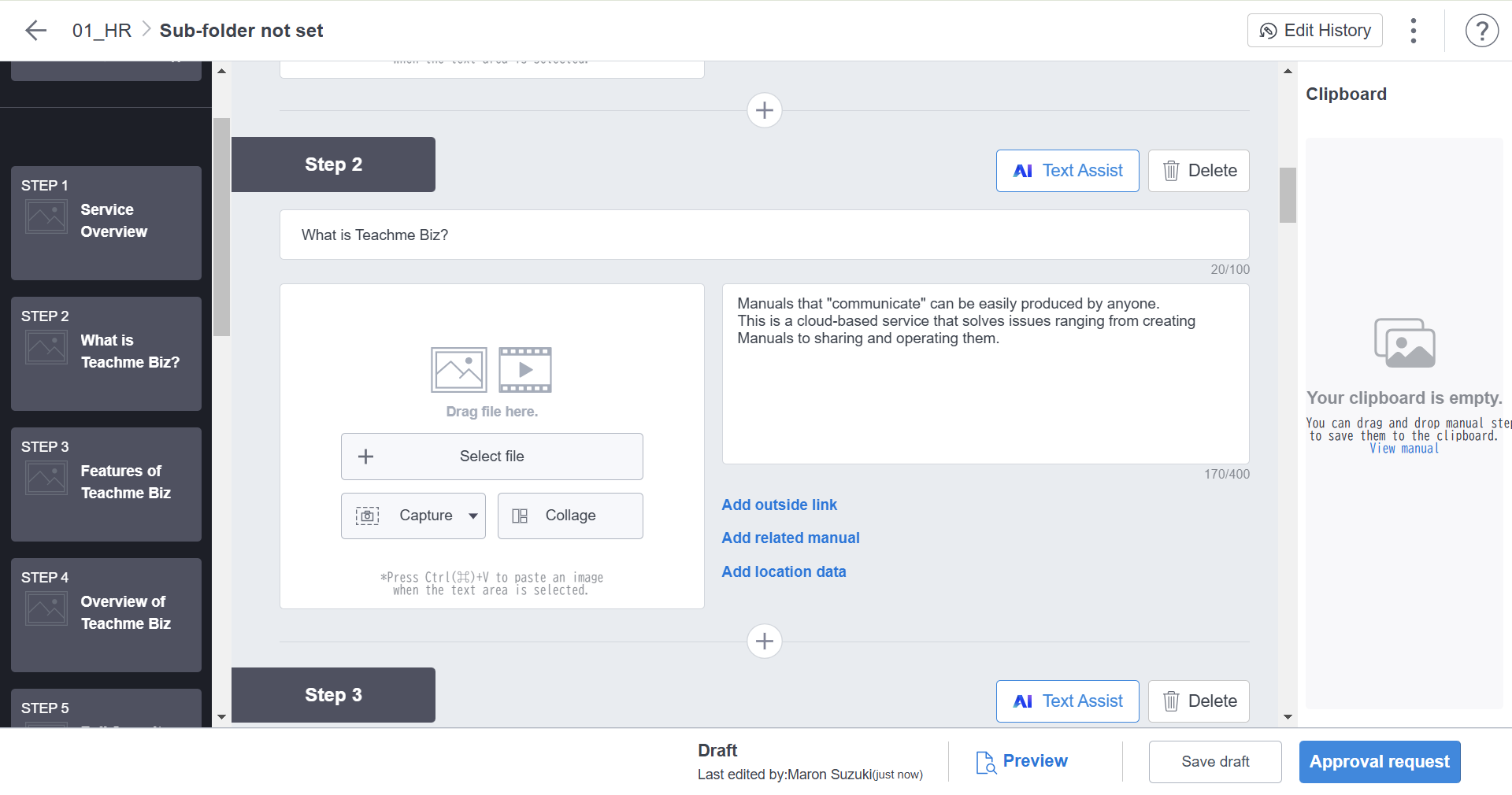

When unchecked
- Step images are not generated
- Optional images can be set manually
Important Notes
- Images generated when checked are for reference only, and should be modified to appropriate images as needed
- Editing or replacing generated images can be performed in the same way as normal manual editing
Related: Add markings and edits to images, such as arrows.
https://teachme.jp/8/manuals/4929404
How to Operate
- 【Beta】 Generate manual drafts from PDF
https://teachme.jp/8/manuals/32063695
